Fast Cheap 6X6X3 Potassium Titanyl Phosphate (KTiOPO3 or KTP) crystals for nd yag laser skin care tool

6X6X3 Potassium Titanyl Phosphate KTiOPO3 or KTP crystals for nd yag laser skin care tool
Click to see details

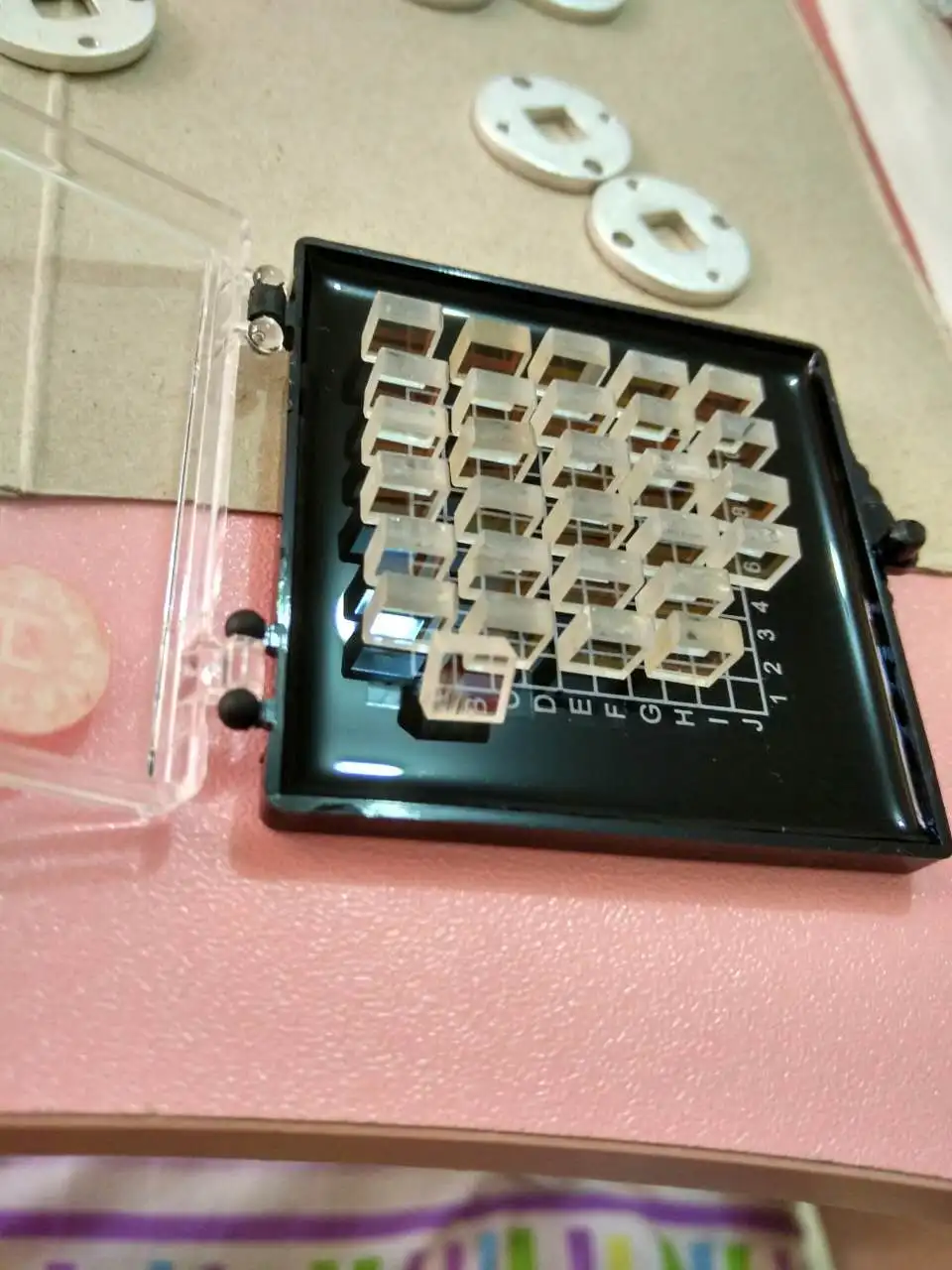

6X6X3 Potassium Titanyl Phosphate KTiOPO3 or KTP crystals for nd yag laser skin care tool part
80 % of buyers enjoyed this product!
Availability: in stock
3.1 out of 5 based on 102 ratings. 7 user reviews.
TODAY'S DEAL Ends in: 04:36:18
Price:  US $100.00 / piece
Sale price:  US $80.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Economical rate and also complimentary delivery. Allow's acquire Limited 6X6X3 Potassium Titanyl Phosphate (KTiOPO3 or KTP) crystals for nd yag laser skin care tool before costs climb.

Simply as you will certainly obtain a fortune, this item is able to give a vehicle that should be extremely interesting for you. The item directory you obtain is certainly offer a reference for those of you that desire to discover the goods you desire.

Potassium Titanyl Phosphate (KTiOPO3 or KTP) crystals are widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems.
OUR KTP is featured by
1. Large nonlinear optical coefficient
2.Wide angular bandwidth and small walk-off angle
3.Broad temperature and spectral bandwidth
4. High electro-optic coefficient and low dielectric constant
5.Large figure of merit
6.Nonhydroscopic, chemically and mechanically stable
we offers
1.Strict quality control
2.large crystal size up to 20x20x40mm3 and maximum length of 60mm;
3.Quick delivery(2 weeks for polished only, 3 weeks for coated)
4.Unbeatable price and quantity discount
5.Technical support
6.AR-coating, mounting and re-polishing service
Chemical and Structural Properties of KTP Crystal

Crystal Structure

Orthorhombic, Space group Pna21, Point group mm2.

Lattice Parameter

a=6.404 Å, b=10.616 Å, c=12.814 Å

Melting Point

~1172 °C

Mohs Hardness

5

Density

3.01 g·cm-3

Thermal Conductivity

13 W·m-1·K-1

Thermal Expansion Coefficient

αx=11×10-6/K, αy=9×10-6/K, αz=0.6×10-6/K

Optical and Nonlinear Optical Properties of KTP Crystal

Transparency Range

350 nm ~ 4500 nm

Thermo-optic Coefficient [K-1](@1064nm)

dnx/dT=6.1×10-6 dny/dT=8.3×10-6 dnz/dT=14.5×10-6

Absorption Coefficient

<0.1% cm-1 @1064nm <1% cm-1 @532nm

For Type II SHG of
a Nd:YAG laser @1064nm

Temperature Acceptance: 24 °C·cm-1
Spectral Acceptance: 0.56 nm·cm-1
Angular Acceptance: 14.2 mrad·cm-1 (φ); 55.3mrad·cm-1 (θ)
Walk-off Angle: 0.55°

NLO Coefficients

deff(II)≈(d24-d15)sin2φsin2θ-(d15sin2φ + d24cos2φ)sinθ

Non-vanished NLO Susceptibilities [pm/V]

d31=6.5 d24=7.6 d32=5 pm/V d15=6.1 d33=13.7

Sellmeier Equations
(λ in μm)

nx2=3.0065+0.03901/(λ2-0.04251)-0.01327λ2
ny2=3.0333+0.04154/(λ 2-0.04547)-0.01408λ2
nz2=3.3134+0.05694/(λ 2-0.05658)-0.01682λ2


Applications for SHG and SFG of Nd: lasers
KTP is the most commonly used material for frequency doubling of Nd:YAG and other Nd-doped lasers, particularly when the power density is at a low or medium level. To date, extra- and intra-cavity frequency doubled Nd:lasers using KTP have become a preferred pumping source for visible dye lasers and tunable Ti:Sapphire lasers as well as their amplifiers. They are also useful green sources for many research and industry applications.
* More than 80% conversion efficiency and 700mJ green laser were obtained with a 900mJ injection-seeded Q-switch Nd:YAG lasers by using extra-cavity KTP.
* 8W green laser was generated from a 15W LD pumped Nd:YVO4 with intra-cavity KTP.
* 200mW green outputs are generated from 1 W LD pumped Nd:YVO4 lasers by using THATSHIGH’s 2x2x5mm KTP and 3x3x1mm Nd:YVO4.
* 2-5mw green outputs are generated from 180mw LD pumped Nd:YVO4 and KTP glued crystals. For more details, please refer to Glued Crystals.
KTP is also being used for intracavity mixing of 0.81μm diode and 1.064μm Nd:YAG laser to generate blue light and intracavity SHG of Nd:YAG or Nd:YAP lasers at 1.3μm to produce red light.
Applications for OPG, OPA and OPO
As an efficient OPO crystal pumped by a Nd:laser and its second harmonics, KTP plays an important role for parametric sources for tunable outputs from visible (600nm) to mid-IR (4500nm), as shown in Fig. 3 and Fig. 4.
Generally, KTP’s OPOs provide stable and continuous pulse outputs (signal and idler) in fs, with 108 Hz repetition rate and a mW average power level. A KTP’s OPO that are pumped by a 1064nm Nd:YAG laser has generated as high as above 66% efficiency for degenerately converting to 2120nm.

The novel developed application is the non-critical phase-matched(NCPM) KTP OPO/OPA pumped by the X-cut KTP crystal. As shown in Fig.5, for pumping wavelength range from 0.7μm to 1 μm, the output can cover from 1.04μm to 1.45μm(signal) and from 2.15μm to 3.2μm(idler). More than 45% conversion efficiency was obtained with narrow output bandwidth and good beam quality.

OUR KTP Crystal Coating Service
Dual Band AR-coating (DBAR) for SHG of 1064nm with following features:
Low reflectance (R<0.15% @ 1064nm; R<0.5% @ 532nm)
High damage threshold (>400MW/cm2 @ 1064nm & 532nm)
Long durability
Broad band coating for OPO applications.
High reflectivity coating:
Other coating types are available upon request.

Specifications for KTP Crystal

Dimension Tolerance

(W±0.1mm) ×(H±0.1mm) ×(L+0.5/-0.1mm) (L≥2.5mm)
(W±0.1mm) ×(H±0.1mm) ×(L+0.1/-0.1mm) (L<2.5mm)

Angle Tolerance

Δθ ≤ 0.25° Δφ ≤ 0.25°

Clear Aperture

90% of central area

Chamfer

Chip

≤ 0.1mm

Damage Threshold
[GW/cm2 ]

> 0.5 for 1064nm, TEM00, 10ns, 10Hz (AR-coated)
> 0.3 for 532nm, TEM00, 10ns, 10Hz (AR-coated)

Flatness

< λ/8 @ 633nm

Parallelism

< 20″

Perpendicularity

≤ 5′

Surface Quality [S/D]

< 10/5

Wavefront Distortion

< λ/8 @ 633nm

Coating

AR coating available upon request

Interior Quality

No visible scattering paths or centers [inspected by 50mW green laser]
